Display

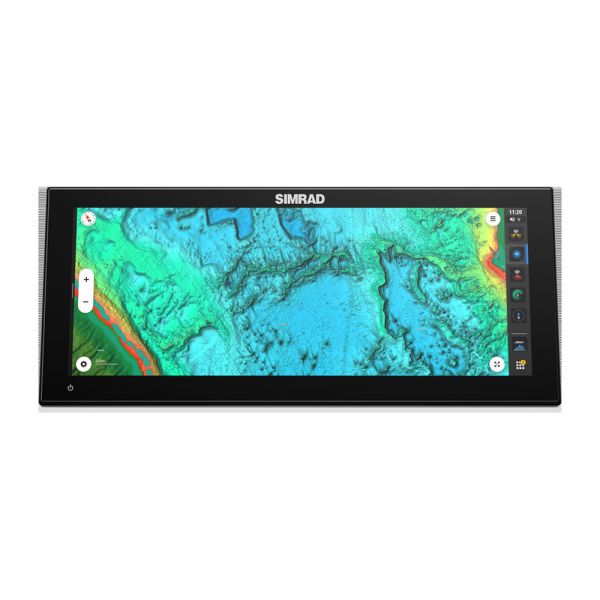

• Size and Type: 15" SolarMax IPS Ultrawide Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
• Resolution: 1920 x 720 px
• Viewing Angles: 85° (top, bottom, left, and right)
• Screen Brightness: >1000 nits
• Backlight Color: White

Power

• Supply Voltage: 12 V DC (10 - 17 V DC min - max)
• Power Consumption (max): 25 W (1811 mA at 13.8 V)
• Protection: Reverse polarity and over voltage (Max 18V)
• Recommended Fuse Rating: 3A

Physical

• Dimensions W x H x D (No bracket, no suncover): W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48")
• Dimensions (With gimbal bracket): H: 180. mm (7.10") D: 96.5 mm (3.80")
• Weight: 1.9 kg (4.2 lbs)
• Mounting Type: Rear mount (bracket supplied), Bracket mount (bracket optional)
• Compass Safe Distance: 50 cm (1.7 ft)

Environmental

• Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
• Waterproof rating: IPx6 and IPx7
• Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Interface and connections

• Interface: Multi-touch screen
• Sonar: One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan up to 800 KHz, Network sonar with other NSX. Network sonar modules* S3100(H), S5100, SonarHub. *NSX requires version 2.1 or above. Sonar modules needs to be on 25.1 (70.1.41 or greater).
• Ethernet: 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars
• Weather: Not in first release
• USB: 1 port (USB A) Output: 5 V DC, 1.5 A
• External Storage: 1 MicroSD slot, 1 port (USB A)
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 2000 PGN supported

• Receive only:
• 59392 ISO Acknowledgement
• 59904 ISO Request
• 60160 ISO Transport Protocol, Data Transfer
• 60416 ISO Transport Protocol, Connection M.
• 65240 ISO Commanded Address
• 60928 ISO Address Claim
• 126208 ISO Command Group Function
• 126992 System Time
• 126996 Product Info
• 126998 Configuration Information
• 127233 Man Overboard Notification (MOB)
• 127237 Heading/Track Control
• 127245 Rudder
• 127250 Vessel Heading
• 127251 Rate of Turn
• 127252 Heave
• 127257 Attitude
• 127258 Magnetic Variation
• 127488 Engine Parameters, Rapid Update
• 127489 Engine Parameters, Dynamic
• 127493 Transmission Parameters, Dynamic
• 127500 Load Controller Connection State / Control
• 127501 Binary Status Report
• 127503 AC input status
• 127504 AC Output Status
• 127505 Fluid Level
• 127506 DC Detailed Status
• 127507 Charger Status
• 127508 Battery Status
• 127509 Inverter Status
• 128259 Speed, Water referenced
• 128267 Water Depth
• 128275 Distance Log
• 129025 Position, Rapid Update
• 129026 COG & SOG, Rapid Update
• 129029 GNSS Position Data
• 129033 Time & Date
• 129038 AIS Class A Position Report
• 129039 AIS Class B Position Report
• 129040 AIS Class B Extended Position Report
• 129041 AIS aids to Navigation
• 129283 Cross Track Error
• 129284 Navigation Data
• 129539 GNSS DOPs
• 129540 AIS Class B Extended Position Report
• 129545 GNSS RAIM Output
• 129549 DGNSS Corrections
• 129551 GNSS Differential Correction Receiver Signal
• 129793 AIS UTC and Date Report
• 129794 AIS aids to Navigation
• 129798 AIS SAR Aircraft Position Report
• 129801 Cross Track Error
• 129802 AIS Safety Related Broadcast Message
• 129539 GNSS DOPs
• 129540 GNSS Sats in View
• 129794 AIS Class A Static and Voyage Related Data
• 129801 AIS Addressed Safety Related Message
• 129802 AIS Safety Related Broadcast Message
• 129808 DSC Call Information
• 129809 AIS Class B “CS” Static Data Report, Part A
• 129810 AIS Class B “CS” Static Data Report, Part B
• 130060 Label
• 130074 Route and WP Service - WP List - WP Name & Position
• 130306 Wind Data
• 130310 Environmental Parameters
• 130311 Environmental Parameters
• 130312 Temperature
• 130313 Humidity
• 130314 Actual Pressure
• 130316 Temperature, Extended Range
• 130569 Entertainment - Current File and Status
• 130570 Entertainment - Library Data File
• 130571 Entertainment - Library Data Group
• 130572 Entertainment - Library Data Search
• 130573 Entertainment - Supported Source Data
• 130574 Entertainment - Supported Zone Data
• 130576 Small Craft Status
• 130577 Direction Data
• 130578 Vessel Speed Components
• 130579 Entertainment - System Configuration Status
• 130580 Entertainment - System Configuration Status
• 130581 Entertainment - Zone Configuration Status
• 130582 Entertainment - Zone Volume Status
• 130583 Entertainment - Available Audio EQ Presets
• 130584 Entertainment - Bluetooth Devices
• 130585 Entertainment - Bluetooth Source Status

NMEA 2000 PGN supported

• Transmit:
• 60160 ISO Transport Protocol, Data Transfer
• 60416 ISO Transport Protocol, Connection M.
• 126208 ISO Command Group Function
• 126992 System Time
• 126993 Heartbeat
• 126996 Product Info
• 127237 Heading/Track Control
• 127250 Vessel Heading
• 127258 Magnetic Variation
• 127502 Switch Bank Control
• 128259 Speed, Water referenced
• 128267 Water Depth
• 128275 Distance Log
• 129025 Position, Rapid Update
• 129026 COG & SOG, Rapid Update
• 129029 GNSS Position Data
• 129283 Cross Track Error
• 129285 Navigation - Route/WP Information
• 129284 Navigation Data
• 129285 Route/Waypoint Data
• 129539 GNSS DOPs
• 129540 GNSS Sats in View
• 130074 Route and WP Service - WP List - WP Name & Position
• 130306 Wind Data
• 130310 Environmental Parameters
• 130311 Environmental Parameters
• 130312 Temperature
• 130577 Direction Data
• 130578 Vessel Speed Components

Navigation and positioning

• NMEA 0183: No
• GPS: Internal, 10Hz, WASS, MSAS, EGNOS
• GPS Correction: 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
• GPS Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• GPS Receiver Channels: 32 Channels
• GPS Update rate: 10Hz
• J1939: No

Wireless

• WiFi: IEEE 802.11b/g/n
• Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic

Languages

• German (Deutsch)
• English (English)
• Dutch (Nederlands)
• Danish (Dansk)
• Spanish (Español)
• French (Français)
• Italian (Italiano)
• Norwegian (Norsk)
• Portuguese (Português)
• Finnish (Suomi)
• Swedish (Svenska)
• Icelandic (Islenska)
• Greek (ελληνικα)
• Chinese (中文)
• Turkish (Türkçe)
• Estonian (Eesti)
• Croatian (Hrvatski)
• Lithuanian (Lietuvių)
• Latvian (Latviešu)
• Polish (Polski)
• Chinese Simplified (中文)
• Japanese (日本語)
• Korean (한국어)
• Ukrainian ()

Charts Supported

• C-MAP Discover X, C-MAP Reveal X, third party charts

AIS

• Receive AIS data over NMEA 2000

Digital Switching

• C-Zone, Simrad COMMAND DDS

Warranty

• Warranty Period: 2 Years
