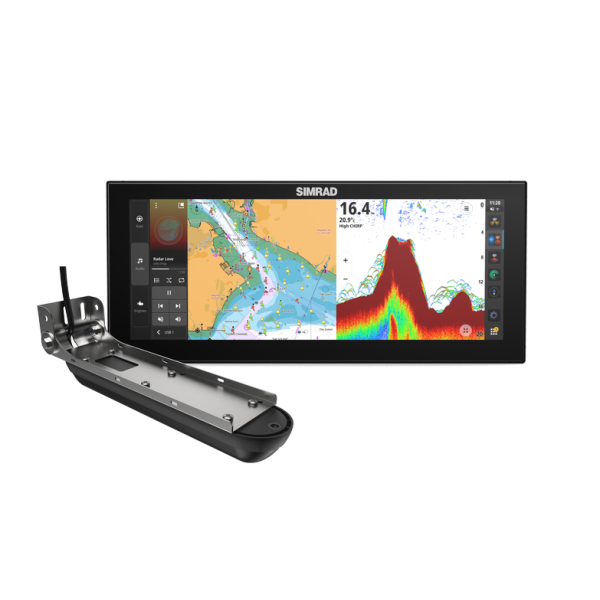

Simrad NSX 3015 Ultrawide sa Active Imaging 3-in-1 sondom
4.920,56 EUR
NSX 3015 Ultrawide – pametni chartplotter/fishfinder. Sa Active Imaging 3-in-1 sondom. Bez karata.
15-inčni ultrawide zaslon visoke rezolucije, s ugrađenim ehosonderom, GPS-om i Wi-Fi povezivošću.
Potrebna je kartica sljedeće generacije C-MAP® DISCOVER™ X ili REVEAL X™.
Availability:
In stock
SKU
000-16278-001
Display
- Size and Type: 15" SolarMax IPS Ultrawide Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
- Resolution: 1920 x 720 px
- Viewing Angles: 85° (top, bottom, left, and right)
- Screen Brightness: >1000 nits
- Backlight Color: White
Power
- Supply Voltage: 12 V DC (10 - 17 V DC min - max)
- Power Consumption (max): 25 W (1811 mA at 13.8 V)
- Protection: Reverse polarity and over voltage (Max 18V)
- Recommended Fuse Rating: 3A
Physical
- Dimensions W x H x D (No bracket, no suncover): W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48")
- Dimensions (With gimbal bracket): H: 180. mm (7.10") D: 96.5 mm (3.80")
- Weight: 1.9 kg (4.2 lbs)
- Mounting Type: Rear mount (bracket supplied), Bracket mount (bracket optional)
- Compass Safe Distance: 50 cm (1.7 ft)
Environmental
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Waterproof rating: IPx6 and IPx7
- Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Interface and connections
- Interface: Multi-touch screen
- Sonar: One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan up to 800 KHz, Network sonar with other NSX. Network sonar modules* S3100(H), S5100, SonarHub. *NSX requires version 2.1 or above. Sonar modules needs to be on 25.1 (70.1.41 or greater).
- Ethernet: 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars
- Weather: Not in first release
- USB: 1 port (USB A) Output: 5 V DC, 1.5 A
- External Storage: 1 MicroSD slot, 1 port (USB A)
- NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 2000 PGN supported
- Receive only:
- 59392 ISO Acknowledgement
- 59904 ISO Request
- 60160 ISO Transport Protocol, Data Transfer
- 60416 ISO Transport Protocol, Connection M.
- 65240 ISO Commanded Address
- 60928 ISO Address Claim
- 126208 ISO Command Group Function
- 126992 System Time
- 126996 Product Info
- 126998 Configuration Information
- 127233 Man Overboard Notification (MOB)
- 127237 Heading/Track Control
- 127245 Rudder
- 127250 Vessel Heading
- 127251 Rate of Turn
- 127252 Heave
- 127257 Attitude
- 127258 Magnetic Variation
- 127488 Engine Parameters, Rapid Update
- 127489 Engine Parameters, Dynamic
- 127493 Transmission Parameters, Dynamic
- 127500 Load Controller Connection State / Control
- 127501 Binary Status Report
- 127503 AC input status
- 127504 AC Output Status
- 127505 Fluid Level
- 127506 DC Detailed Status
- 127507 Charger Status
- 127508 Battery Status
- 127509 Inverter Status
- 128259 Speed, Water referenced
- 128267 Water Depth
- 128275 Distance Log
- 129025 Position, Rapid Update
- 129026 COG & SOG, Rapid Update
- 129029 GNSS Position Data
- 129033 Time & Date
- 129038 AIS Class A Position Report
- 129039 AIS Class B Position Report
- 129040 AIS Class B Extended Position Report
- 129041 AIS aids to Navigation
- 129283 Cross Track Error
- 129284 Navigation Data
- 129539 GNSS DOPs
- 129540 AIS Class B Extended Position Report
- 129545 GNSS RAIM Output
- 129549 DGNSS Corrections
- 129551 GNSS Differential Correction Receiver Signal
- 129793 AIS UTC and Date Report
- 129794 AIS aids to Navigation
- 129798 AIS SAR Aircraft Position Report
- 129801 Cross Track Error
- 129802 AIS Safety Related Broadcast Message
- 129539 GNSS DOPs
- 129540 GNSS Sats in View
- 129794 AIS Class A Static and Voyage Related Data
- 129801 AIS Addressed Safety Related Message
- 129802 AIS Safety Related Broadcast Message
- 129808 DSC Call Information
- 129809 AIS Class B “CS” Static Data Report, Part A
- 129810 AIS Class B “CS” Static Data Report, Part B
- 130060 Label
- 130074 Route and WP Service - WP List - WP Name & Position
- 130306 Wind Data
- 130310 Environmental Parameters
- 130311 Environment
NSX Ultrawide koncept
- Trenutni kvadratni format zaslona ograničava preglednost i funkcionalnost, posebno pri prikazu karata i kod podijeljenog zaslona (split screen) za istovremeni rad više aplikacija.
- Zbog neiskorištenog prostora i vizualne neuravnoteženosti, postojeći zasloni često ne pružaju čist i moderan izgled komandne ploče.
- Ugradnja više zaslona usporava proizvodnju i povećava složenost instalacije.
- Dodatne preinake na komandnoj ploči, ožičenje i podešavanje produžuju vrijeme ugradnje.
- Takav pristup je jednostavno neučinkovit.
Predstavljamo prvi potpuno funkcionalni ultrawide MFD na svijetu
- Novi NSX ULTRAWIDE predstavlja sljedeći korak u razvoju NSX platforme.
- Revolucionarni 12" i 15" ultrawide marine MFD uređaji postavljaju novi standard na tržištu.
- NSX ULTRAWIDE korisnicima donosi bolju preglednost, kontrolu i funkcionalnost.
- OEM proizvođači mogu isporučiti jedinstvenu, premium estetiku i sve prednosti dvostrukih zaslona — bez dodatnih komplikacija.
- NSX ULTRAWIDE nudi istu aktivnu površinu kao dva manja zaslona.
- Po pitanju funkcionalnosti, ULTRAWIDE nudi znatno više: objedinjavanjem prikazuje jednaku količinu informacija s dva zaslona na jednom.
- Rezultat je besprijekorno i potpuno uranjajuće korisničko iskustvo zahvaljujući naprednom ultrawide omjeru stranica i zaslonu visoke gustoće piksela.
Ključne značajke
- Pruža sve prednosti višestrukih zaslona, bez potrebe za višestrukim instalacijama.
- Manje kabela.
- Jedan izrez na komandnoj ploči.
- Manje podešavanja.
- Objedinjuje jednaku količinu informacija s dva zaslona u jedan za neprekinuto i potpuno uranjajuće iskustvo — zahvaljujući ultrawide formatu i visokoj gustoći piksela.
- Panoramski zaslon nadopunjuje estetiku dizajna plovila te omogućuje atraktivne, niskoprofilne komandne ploče inspirirane luksuznom autoindustrijom.
- Informacije su preglednije i lakše za praćenje.
- Više zaslona, manje zauzetog prostora.
- Pojednostavljena instalacija.
- Jedinstven format zaslona – novost u nautičkom segmentu.
- Bolja vidljivost.
- Omogućuje dizajn komandne ploče u automobilskom stilu.
