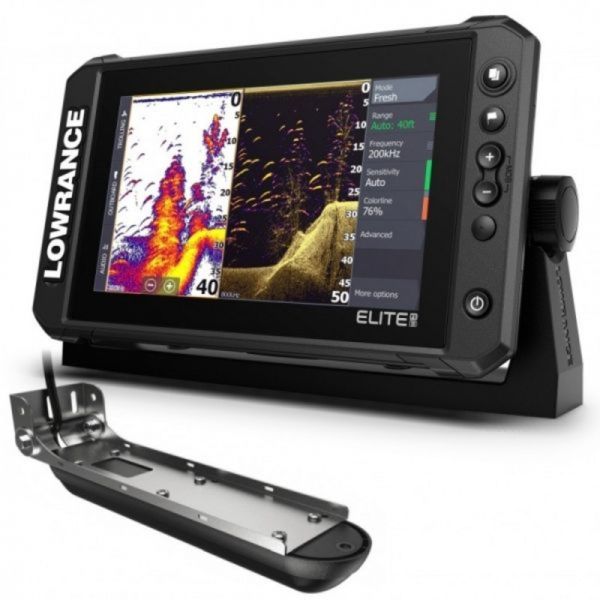

Lowrance Elite 9 FS sa Active Imaging 3-in-1 sondom
125,00 EUR
Novi Elite™ Fishing System (FS) omogućuje vam pristup kompletnoj liniji Lowrance alata za pronalaženje ribe - uključujući ActiveTarget ™ live sonar, Active Imaging ™, FishReveal ™ i unaprijed učitani C-MAP® Contour™+ karte -
Glavne značajke
- ActiveTarget Live sonar i Active Imaging kompatibilni Live Sonar podržava dodatke sonara kao što su ActiveTarget ™ i Active Imaging ™ 3-u-1 sonar
- Potpuna mrežna sposobnost: Više prikaza: dijeljenje sonara, grafikona, putnih točaka i ostalih korisničkih podataka između zaslona
- Multi-touch zaslon visoke razlučivosti
- Unaprijed učitane s C-MAP Contour + kartama (AMER, APAC)
- NMEA 2000®: Podrška i nadzor NMEA 2000® uređaja
- Halo radar: Izravno pogonite kupole radara Lowrance
- Ukupna kontrola: Potpuna touchscreen kontrola Power Pole® anchor i Ghost® trolling motora
Availability:
In stock
SKU
Lowrance Elite 9 FS sa Active Imaging 3-in-1 sondom
Sonar
- Power Output: Max 1 kW RMS
- Sonar Connections: One connector for Active Imaging SideScan, DownScan and CHIRP
- Active Imaging 3-in-1:
- DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
- SideScan Imaging at 455 kHz: Max 300 ft / 91 m to each side
- CHIRP Sonar:
- High Range (160-240 kHz) / 200 kHz: 1000 ft / 305 m
- Med Range (60-100 kHz) / 83 kHz: 1000 ft / 305 m
- Low Range (40-60 kHz) / 50 kHz: 3000 ft / 900 m
- Available Sonar Frequencies: Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging
- Depth Alarm: Yes
- Shallow Alarm: Yes
- Temperature Readings: Yes
- Transducer Type: Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar®
Environmental
- Operating temperature range: -15°C to +55°C (5°F to 131°F)
- Storage temperature: -20°C to +60°C (4°F to 140°F)
- Waterproof rating: IPX6 and IPX7
Electrical
- Supply voltage: 12 V DC (10 - 17 V DC min - max)
- Recommended fuse rating: 3 A
- Power consumption (maximum): 28 W (2 A at 13.8 V DC)
Display
- Resolution: 800 x 480 pixels
- Viewing angles in degrees: 50° top, 60° bottom, 70° left and right
- Brightness: > 1200 nits
- Touch screen: Multitouch
Physical
- Weight (display only): 1.2 kg (2.7 lbs.)
- Compass Safe Distance: 0.5 m (1.6 ft.)
Interface / Connectivity
- NMEA 2000®: 1 port (Micro-C connector)
- Data card reader: 1x slot (microSD, SDXC)
- Ethernet: 1 port (5-pin Ethernet connector, 100Base-T)
- Sonar: 1 port (9-pin connector)
- WiFi Internal: 802.11b/g/n (No wireless networking between units)
- Bluetooth®: 4.0 with support for Bluetooth® Classic
- GPS: 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS
