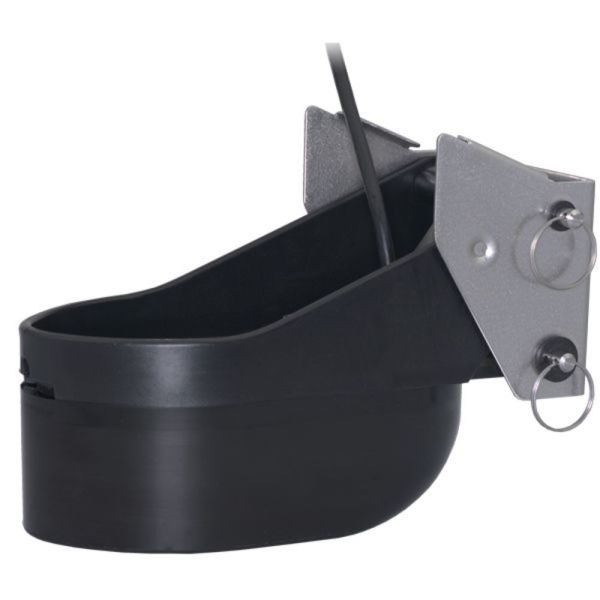

TM275LHW Wide-beam Chirp-ready Transom Mount

1 kW

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.



Category: Chirp-ready
Power: 1kW
Function: Depth,Temperature
Frequency: 42-65 kHz, 150-250 kHz
Mount Style: Transom
Housing Material: Urethane/Stainless Steel



Features

Depth and fast-response water-temperature sensor
1 kW for great deep-water performance from the low frequency
Low frequency: 42 to 65 kHz

• 25° to 16° beam
• Maximum depth of 914 m (3,000')

High frequency: 150 to 250 kHz

• 25° constant beamwidth
• Maximum depth of 914 m (3,000')

123 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column
Transom mount, urethane transducer
Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom
Also available as a thru-hull (B275LHW) and pocket/keel (PM275LHW) mount
Exclusive Xducer ID® technology

Specifications

• Weight: 4 kg (8.9 lb.)
• Recommended Boat Length: 10 m (32') and up
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Includes: Stainless steel bracket and mounting hardware
• Transducer Element: Eight internal broadband ceramic assemblies
