Airmar TM185 M XSONIC krmena sonda 13998

Sonda Airmar® TM185 M XSONIC 000-13998-001

Opis  proizvoda
Ova Chirp sonda radi na frekvencijskom rasponu od 85-135 kHz i otkriva ribu u plitkim, mutnim vodama na srednjim dubinama (do 1.500 stopa *), s ultra jasnom razlučivosti cilja.

...........................................................................................................

Product details

This economical Chirp transducer is designed for offshore fishing and freshwater anglers. Operating at a frequency range of 85-135 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 1,500 feet*) along with ultra-clear target resolution.

Specifications

• Dimensions W x H x D        108 x 191 x 74 mm (W, L, D) (4.3 x 7.5 x 2.9") without bracket
• Weight                                  4 kg (8.9 lb)
• Max Depth                            400m (1200 ft) depending on sonar
• Frequencies                          85-135 kHz

......................................................................................................................................

TM185M

......................................................................................................................................

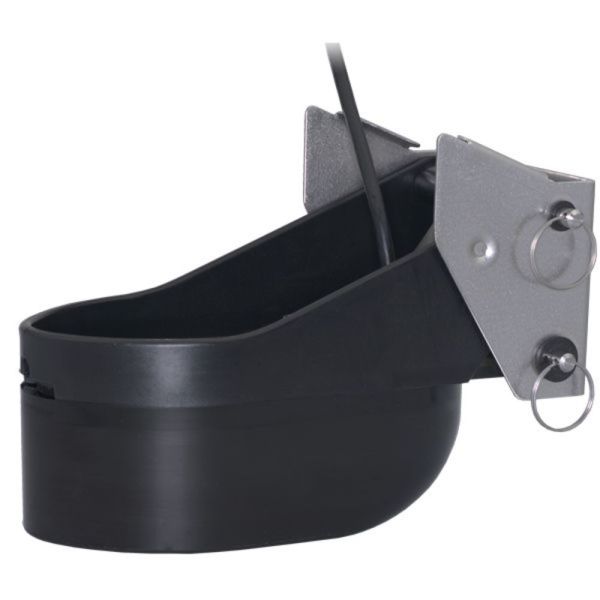

TM185M Chirp-Ready Transom Mount

1 kW

The TM185M is a transom mounted Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. Medium frequency delivers the right combination of coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500') and delivers ultra-clear target resolution.

The TM185M transmits across the Medium Frequency 85 to 135 kHz band.

Features

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1500')
• Medium Frequency: 85 kHz to 135 kHz
• 16° to 11° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation
• Urethane transom transducer with a stainless steel bracket for installation on outboard and I/O powered boats
• Recommended boat size: Up to 10 m (32')
• Also available in thru-hull (B285M and B175M), and in-hull (M135M) models
• Exclusive Xducer ID® technology

Specifications

• Weight: 4.16 kg (9.17 lb)
• Acoustic Window: Urethane
• Urethane transom transducer with a stainless steel bracket
• Accommodates transom angles from 3° to 21°
• One internal broadband ceramic assembly
