Sonda XSONIC Airmar® SS60

• 600W,
• 50/200 kHz,
• 0°, 12° ili 20° Tilt

Opcije Sonde XSONIC Airmar® SS60  su slijedeće :

• XSONIC Airmar® SS60 tilt 0°     Part Number: 000-13784-001
• XSONIC Airmar® SS60 tilt 12°   Part Number: 000-13785-001
• XSONIC Airmar® SS60 tilt 20°   Part Number: 000-13786-001

u poziciji varijacije proizvoda potrebno je odabrati sondu s odgovarajućim tiltom  ( dakle potrebno je znati koliki je nagib na trupu broda zbog tilta sonde, sonda 0° je kad se montira na ravno dno )

..............................................................................................................................................................

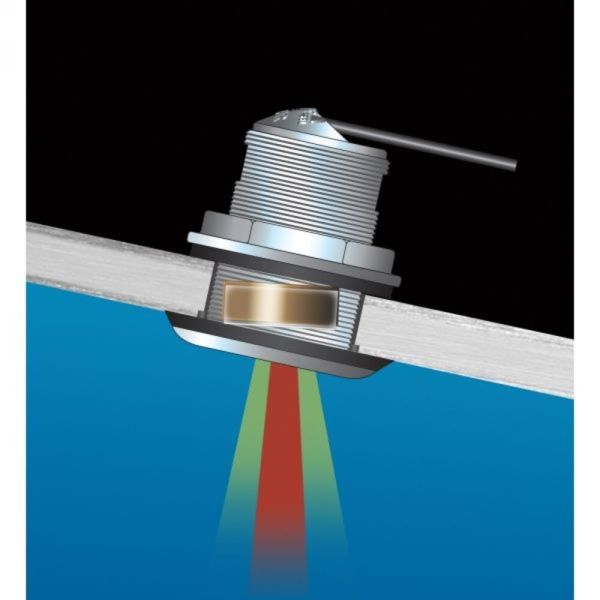

SS60 Depth/Temperature Transducer

• The SS60 is a Stainless Steel, thru-hull, tilted, dual-frequency, depth and temperature transducer.
• The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

..............................................................................................................................................................

Features

• Depth and water temperature
• 600 W
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Perfect for center-console or trailered boats
• Low-profile protrusion extends only 5 mm (3/16") outside the hull
• No effect on your boat’s running performance
• Stainless steel housing for use on all hull materials

..............................................................................................................................................................

Specifications

• Weight: 1.4 kg (3 lb.)
• Recommended Boat Length: Up to 8 m (25')
• Hull Material: Compatible with all hull materials
• Hull Deadrise: 8°-15°
• Acoustic Window: Urethane
• Hole Diameter: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)
